SGK S01-L1 S01-L2 Industrial Fiber Optic Cable Assembly
SGK S01-L2 compatible fiber patch cord, HCS/PCF 200/230µm, for OKUMA CNC automation, compatible CA7003, up to 50m. OEM/ODM from Changzhou Jinshang.
The SGK S01-L1 / S01-L2 Industrial Fiber Optic Cable Assembly pairs SGK S01-L1 simplex and S01-L2 duplex-style connectors with orange industrial optical cable, used for controller communication, machine-tool links, and replacement cable sourcing.
Product Overview

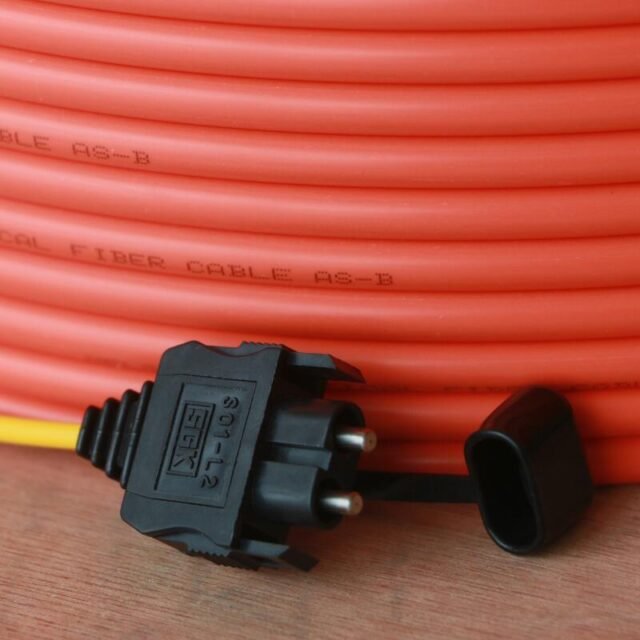

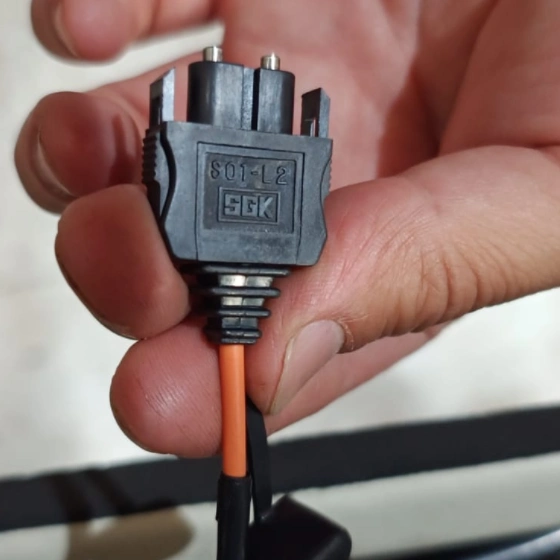

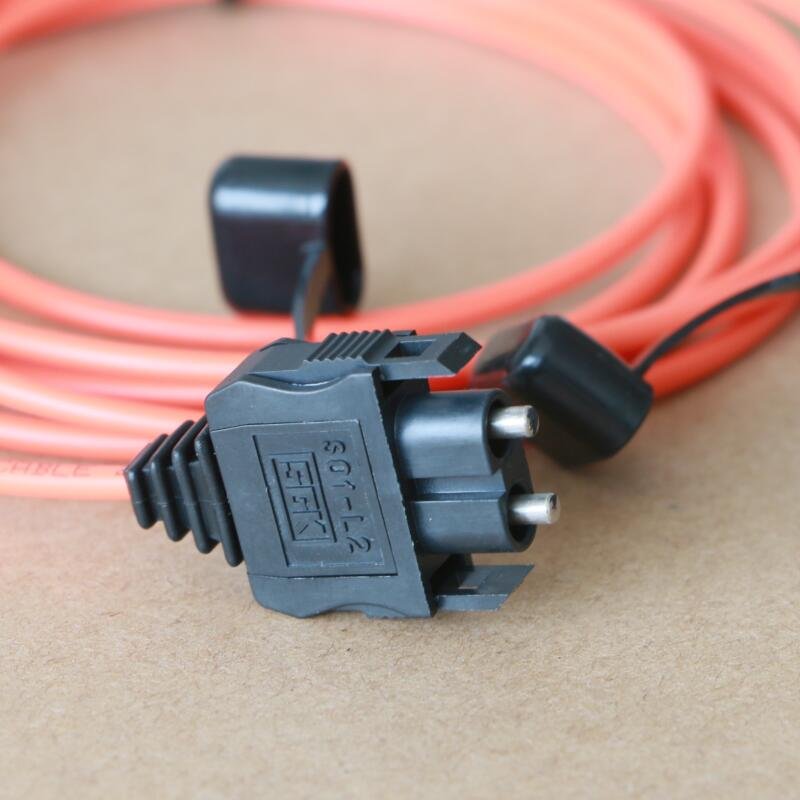

Designed for industrial controller communication and machine-tool optical links, this assembly uses SGK S01-L1 simplex and S01-L2 duplex-style connectors on orange industrial optical cable with model-specific terminations. The images show both simplex and duplex connector variants; the required S01 model and end combination must be stated in the order. Visible housing/jacket/color/ferrule/protection options are confirmed in the quotation or approved drawing.
Key Features
- SGK S01-L1 simplex and S01-L2 duplex-style connectors
- Orange industrial optical cable with model-specific terminations
- Passive optical path with no conductive connection
- Length, jacket, labeling, and routing protection configurable
- Images show both simplex and duplex variants
- Suited to servo and PLC optical networks
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Connectors | SGK S01-L1 (simplex) / S01-L2 (duplex) | State end combo |
| Cable | Orange industrial optical | Per image |
| Fiber | Industrial PCF/POF (confirm grade) | Per order |
| Format | Simplex or duplex | Select model |
| Length | Custom to order | Per routing |
| Path type | Passive optical | Tx/Rx pair defines link |
Applications
- Industrial controller communication
- Machine-tool optical links
- Servo and PLC optical networks
- Model-specific spare cable supply
Performance & Reliability
Optical performance depends on fiber selection, termination quality, end-face cleanliness, bend control, finished length, and correct seating. The passive path provides EMI immunity; the paired transmitter and receiver define the link. Because the images show both simplex and duplex variants, state the exact S01 model and end combination to avoid shipping the wrong configuration.
Customization & Ordering
We build SGK S01-L1/L2 assemblies to your required simplex/duplex end combination, with configurable length, jacket, labeling, and protection. Compare with the CA7003 JIS F07 cable and the J3BUS cable. Quote: sales@fevelectronics.com.
FAQ
Q: S01-L1 or S01-L2, which do I order?
A: S01-L1 is simplex and S01-L2 is duplex. State the required model and end combination in the order, as the images show both variants.
Q: Is this a JIS F07 duplex PCF link?
A: It is in the same JIS F07 / PCF industrial family; see the CA7003 JIS F07 cable for the dedicated duplex assembly.
Q: Can lengths be customized?
A: Yes, custom length, jacket, labeling, and protective routing are available to order.
