Molded type AOC HDMI Cable hybrid type fiber optic cable
Molded type AOC HDMI 2.1 cable, 48Gbps, 8K@60Hz 4K@120Hz, hybrid fiber-copper, durable molded connectors, up to 100m, HDR eARC HDCP 2.3. OEM/ODM from Changzhou Jinshang.
Molded Type AOC HDMI Cable Hybrid Type Fiber Optic Cable
Changzhou Jinshang Electronic Technology’s Molded Type AOC HDMI cable features high-quality molded connectors with superior strain relief for durable and reliable performance. With HDMI 2.1 specification and 48Gbps bandwidth, this cable supports 8K@60Hz and 4K@120Hz resolutions. The hybrid fiber-copper design ensures stable transmission over long distances up to 100 meters, making it ideal for professional AV installations and home theater systems.
Key Features
- HDMI 2.1 Certified – Full HDMI 2.1 specification with 48Gbps bandwidth
- 8K & 4K Support – 8K@60Hz, 4K@120Hz, 10K resolution support
- 48Gbps Bandwidth – Uncompressed high-definition audio and video transmission
- Hybrid AOC Design – Fiber for video data + copper for power/HDCP/EDID
- Long Distance – Up to 100 meters without signal loss or repeaters
- HDR & eARC – High Dynamic Range with enhanced Audio Return Channel
- EMI/RFI Immunity – Fiber optic technology eliminates electromagnetic interference
- Durable Construction – High-quality connectors and cable for long service life
Technical Specifications
| Parameter | Specification |
|---|---|
| HDMI Version | HDMI 2.1 |
| Max Bandwidth | 48Gbps |
| Max Resolution | 8K@60Hz, 4K@120Hz, 10K |
| Cable Type | Active Optical Cable (AOC) Hybrid |
| Fiber Type | OM3 Multimode Fiber (4 fibers) |
| Connector Type | HDMI Type A (Standard) male to male |
| Max Length | Up to 100 meters |
| HDR Support | HDR10, Dolby Vision, 10-bit/12-bit color |
| HDCP | HDCP 2.3 compliant |
| Audio Support | eARC, Dolby Atmos, DTS:X, up to 32 channels |
| Operating Temperature | 0°C to 70°C |
| Customization | Length, connector type, jacket color, logo |
Applications
- Home Theater & AV – 8K TVs, projectors, soundbars, AV receivers
- Professional AV – Conference rooms, classrooms, auditoriums, control rooms
- Digital Signage – Video walls, retail displays, commercial installations
- Gaming & Esports – High-refresh gaming monitors and consoles
- Broadcast & Studio – Studio monitors, video production, live events
- Education & Corporate – Boardrooms, training centers, presentation systems
- Medical Imaging – High-resolution medical displays and imaging systems
Why Choose Changzhou Jinshang?
With over 15 years of experience in fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality AOC HDMI cables with strict quality control. We offer OEM/ODM services, custom lengths, connector configurations, and competitive factory-direct pricing. All products undergo 100% testing before shipment.
Contact us today for a free quote and sample!

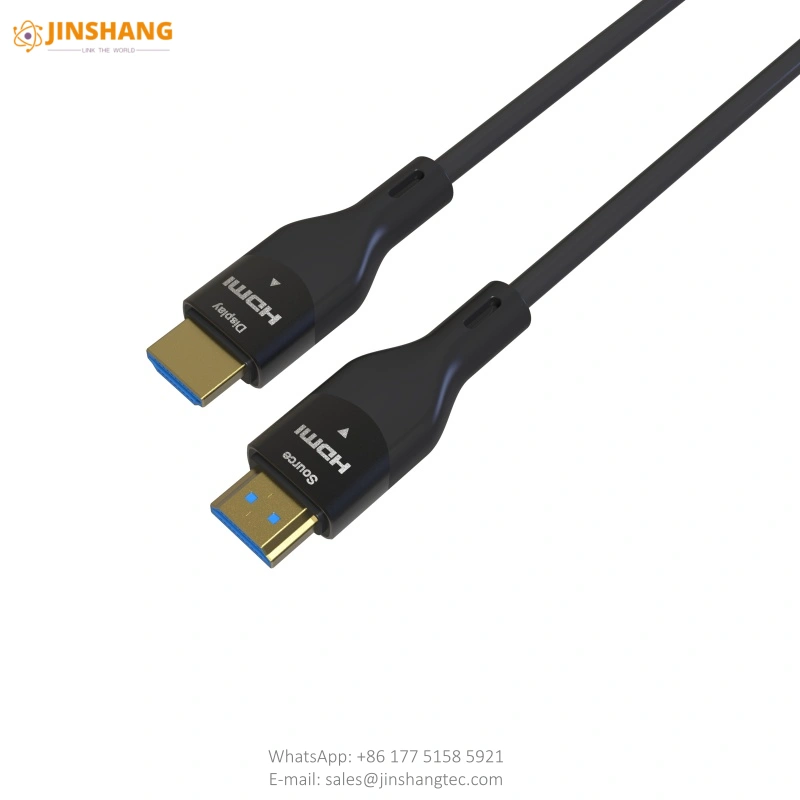

AOC HDMI 2.1 Hybrid Active Optical Cable 48Gbps 4K 120Hz CMP Plenum related eARC HDR
CMP Plenum-rated AOC HDMI 2.1 cable, 48Gbps 8K@60Hz 4K@120Hz, fire-resistant jacket for plenum spaces. Up to 100m, eARC HDR HDCP 2.3, LSZH option. Commercial grade.

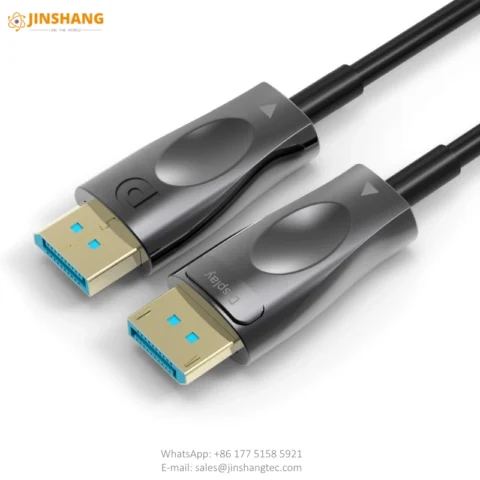

AOC DP CABLE Fiber Optic DisplayPort 2.1 Active Optical Cable 54Gbps
AOC DisplayPort 2.1 active optical cable, 54Gbps UHBR20, 8K@60Hz 4K@240Hz 16K with DSC, hybrid fiber-copper, up to 100m, HDR HDCP 2.3. OEM/ODM custom cables from Changzhou Jinshang.

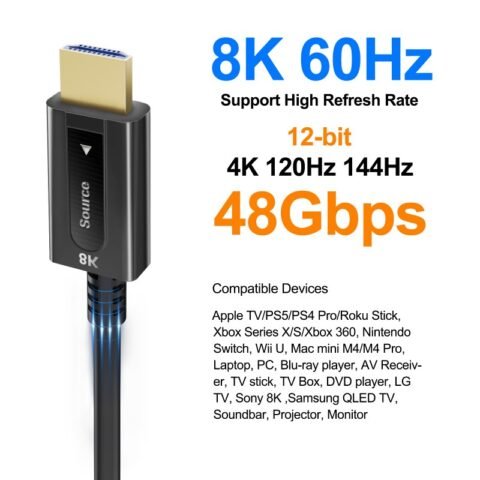

Hybrid Active Optical HDMI Cable (AOC) with Detachable Replaceable Connectors easy for maintainace
Detachable replaceable connector AOC HDMI 2.1 cable, 48Gbps, 8K@60Hz 4K@120Hz, easy maintenance, hybrid fiber-copper, up to 100m, HDR eARC. OEM/ODM from Changzhou Jinshang.
AOC HDMI CABLE 2.1 8K4K ACTIVE OPTICAL HYBRID LEAD
AOC HDMI 2.1 active optical hybrid lead, 48Gbps, 8K@60Hz 4K@120Hz, hybrid fiber-copper, up to 100m, HDR eARC HDCP 2.3. OEM/ODM from Changzhou Jinshang.
