HFBR-T1521Z R2521Z Fiber Optic Transmitter Receiver Pair
Fiber optic cable for R2521Z receiver T1521Z transmitter, compatible HFBR-1521, industrial automation power systems, up to 50m. OEM/ODM from Changzhou Jinshang.

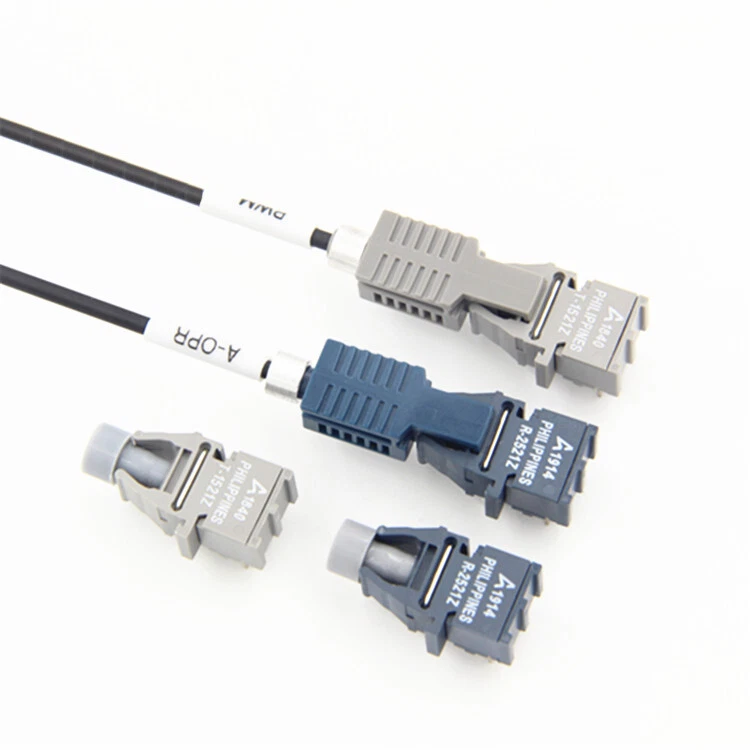

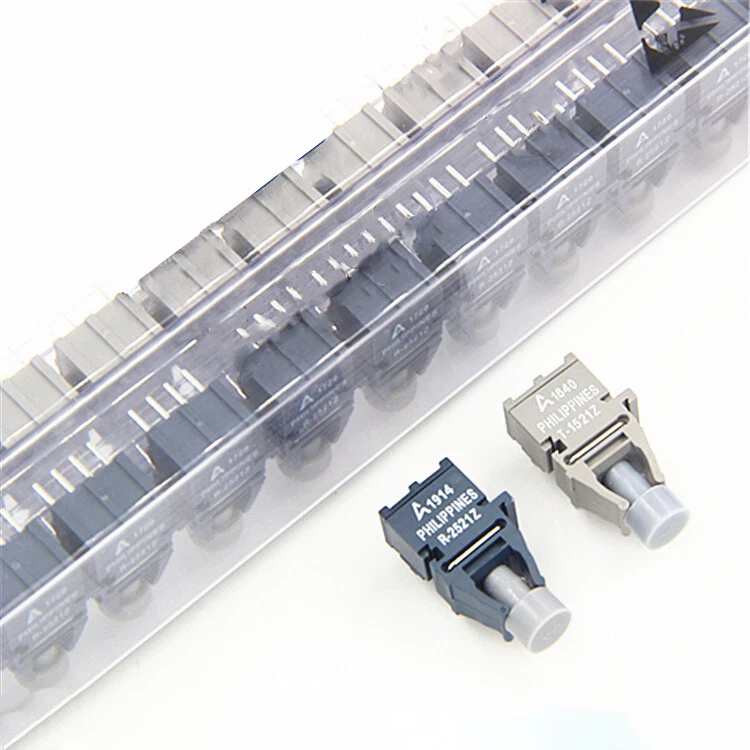

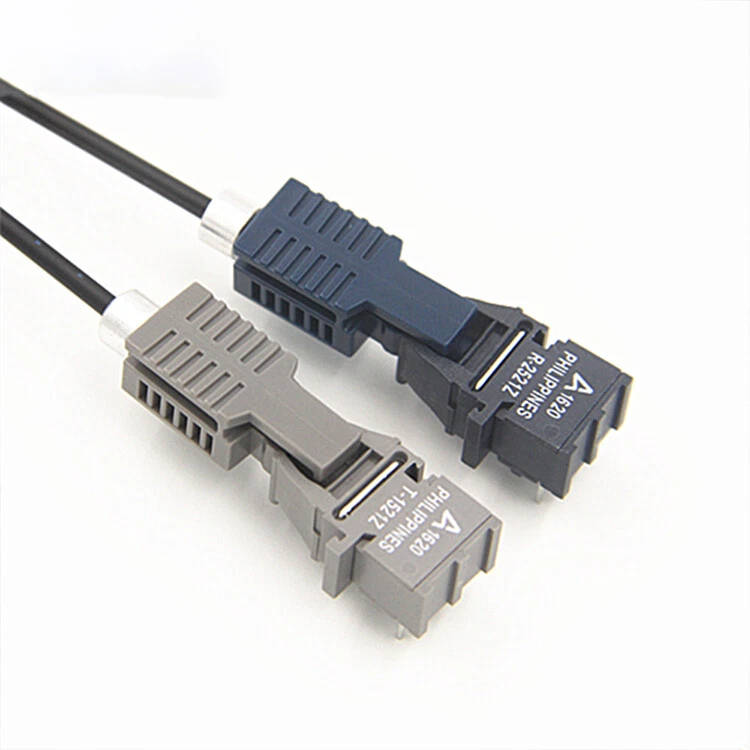

The HFBR-T1521Z / R2521Z is a separate transmitter and receiver module pair for an industrial optical data link with Versatile Link-compatible ports, used in factory automation, equipment design and service, and optical isolation projects.
Product Overview
This pair provides a compact Tx/Rx set for an optical data link, with the transmitter and receiver as separate modules and Versatile Link-compatible optical ports. Because modules that look similar can carry different ratings, the correct part must be confirmed from the component marking and equipment documentation before installation. Alternative shells, colors, or protection in the photos are selectable configurations.
Key Features
- Separate transmitter and receiver modules
- Versatile Link-compatible optical ports
- Designed to operate as a matched optical data link
- Compact component format for board/equipment integration
- Suited to control-board integration and legacy link repair
- Optical isolation and EMI immunity by design
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Transmitter | HFBR-T1521Z | Verify printed marking |
| Receiver | HFBR-R2521Z | Filename also shows R2512Z; confirm |
| Port format | Versatile Link compatible | Match mating port |
| Fiber | 1 mm POF / H-PCF family | Per datasheet |
| Light source | LED (650 nm class) | Per datasheet |
| Use | Tx/Rx module pair | Not a finished cable |
Applications
- Control-board integration in industrial equipment
- Legacy optical link repair
- Optical isolation and EMI-sensitive links
- Factory automation communication
Performance & Reliability
The pair must be matched to the equipment’s electrical interface, optical wavelength, connector format, data-rate requirement, and pin assignment; the surrounding circuit and paired optical device determine overall link performance. Because look-alike modules carry different ratings, select by the exact printed model and datasheet, keep the optical port clean, observe handling precautions, and verify orientation before insertion.
Customization & Ordering

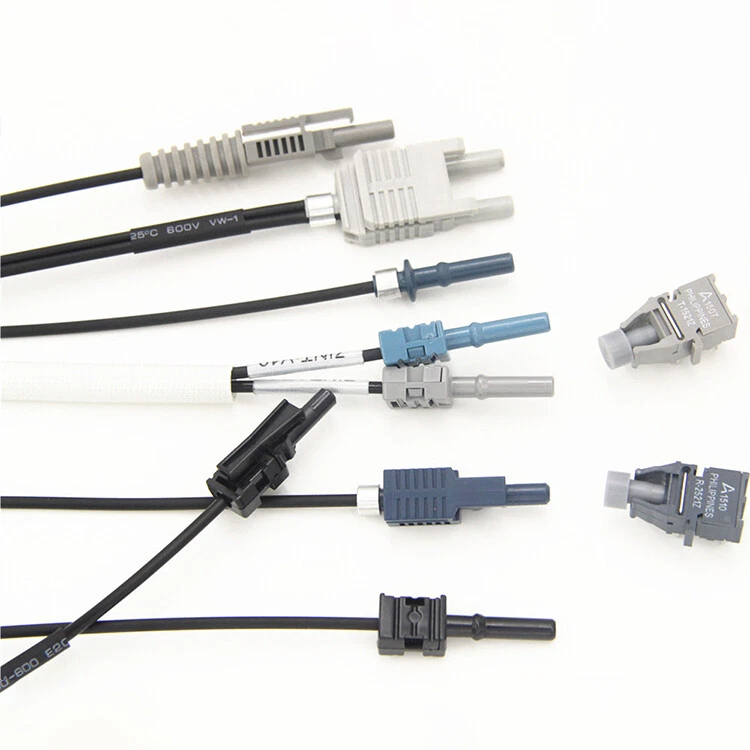

We supply the transceiver pair and matching HFBR POF cable assemblies to complete the link. Confirm the exact part number, pinout, and fiber. Quote requests: sales@fevelectronics.com.
FAQ

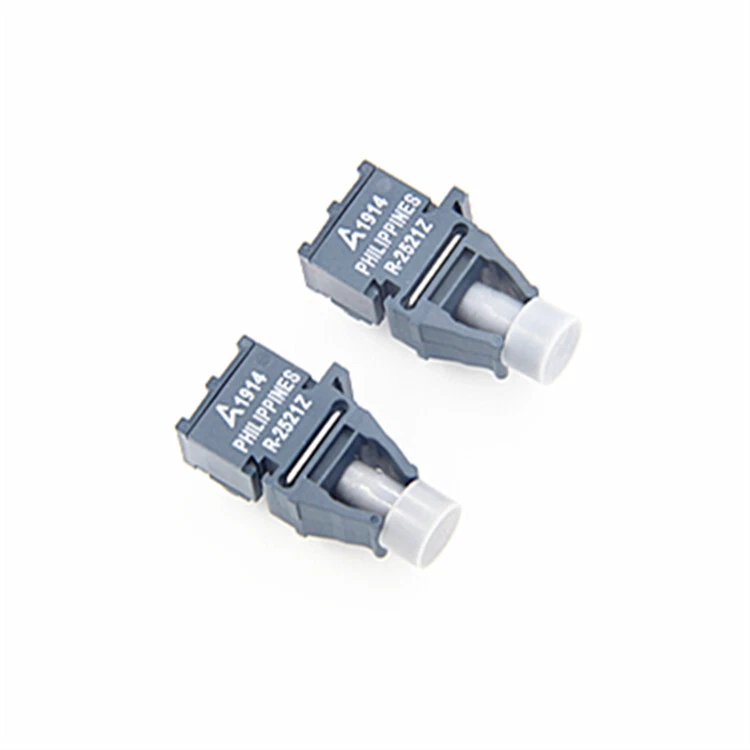

Q: R2512Z or R2521Z, which receiver do I have?
A: The source filenames use both R2512Z and R2521Z. Verify the exact printed part number on the module before ordering; do not apply data from a nearby HFBR variant without the datasheet.
Q: Is this a finished cable?
A: No, it is the Tx/Rx module pair. For the cable that mates to it, see the HFBR-4532Z cable assembly.
Q: What fiber does it use?
A: Versatile Link ports mate to 1 mm POF / H-PCF; confirm the fiber grade against the module datasheet.
