AOC HDMI Active Hybrid Cable 2-in-1 detachable type HDMI-A to HDMI A/D easy pass through pipes conduits
2-in-1 Detachable AOC HDMI 2.1 cable, 48Gbps, 8K@60Hz 4K@120Hz, HDMI Type A + Micro Type D, easy pass through pipes/conduits, up to 100m. OEM/ODM from Changzhou Jinshang.
AOC HDMI Active Hybrid Cable 2-in-1 Detachable Type HDMI A to HDMI A/D Easy Pass Through Pipes Conduits

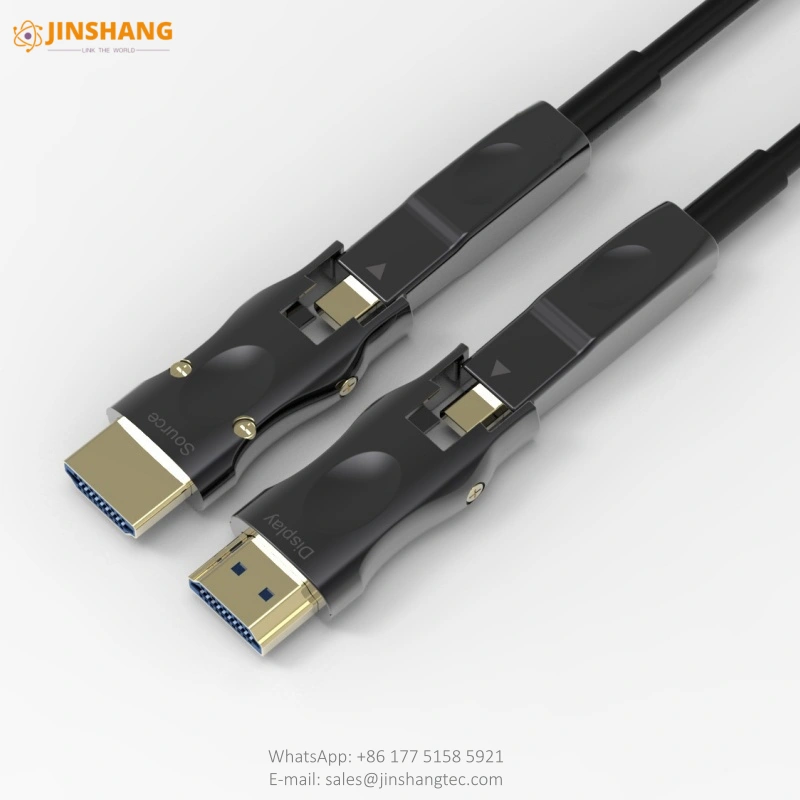

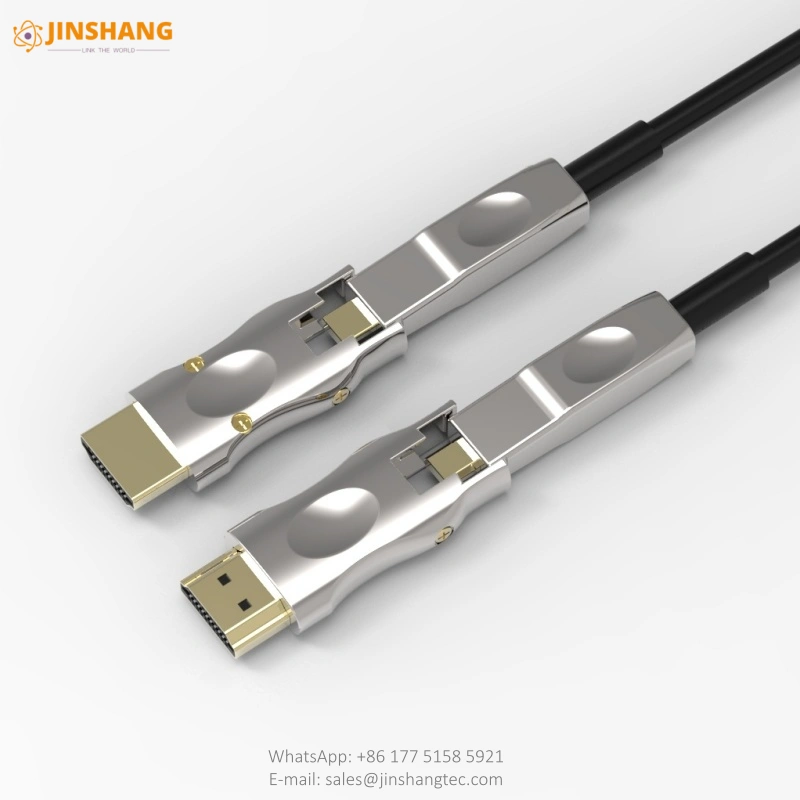

Changzhou Jinshang Electronic Technology’s 2-in-1 Detachable AOC HDMI cable features an innovative design with interchangeable HDMI Type A (standard) and HDMI Type D (micro) connectors. With HDMI 2.1 specification and 48Gbps bandwidth, this cable supports 8K@60Hz and 4K@120Hz. The detachable connector heads allow the slim cable body to easily pass through pipes, conduits, and tight spaces during installation, then attach the desired connector type at each end.
Key Features
- HDMI 2.1 Certified – Full HDMI 2.1 specification with 48Gbps bandwidth
- 2-in-1 Detachable Design – HDMI Type A and Type D (Micro) connector heads included
- Easy Conduit Installation – Slim cable body passes through pipes and tight spaces
- 8K & 4K Support – 8K@60Hz, 4K@120Hz, 10K resolution support

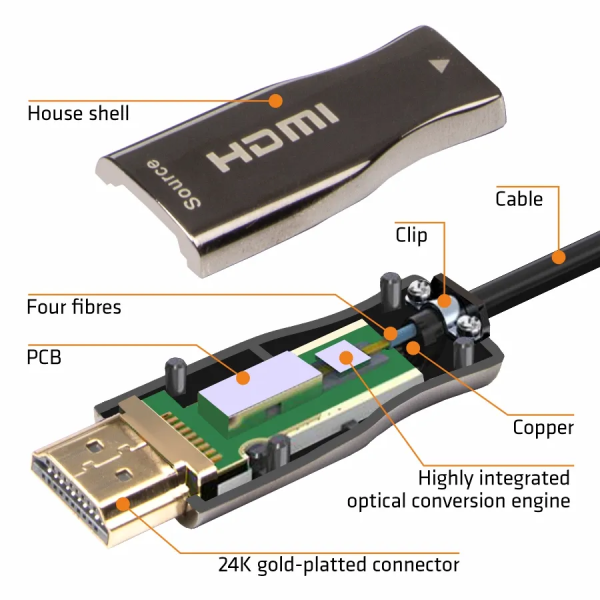

- Hybrid AOC Design – Fiber for video data + copper for power/HDCP/EDID
- Long Distance – Up to 100 meters without signal loss or repeaters
- HDR & eARC – High Dynamic Range with enhanced Audio Return Channel
- EMI/RFI Immunity – Fiber optic technology eliminates electromagnetic interference
Technical Specifications
| Parameter | Specification |
|---|---|
| HDMI Version | HDMI 2.1 |
| Max Bandwidth | 48Gbps |
| Max Resolution | 8K@60Hz, 4K@120Hz, 10K |
| Connector Types | 2-in-1: HDMI Type A (Standard) + Type D (Micro) |
| Cable Type | Active Optical Cable (AOC) Hybrid |
| Fiber Type | OM3 Multimode Fiber (4 fibers) |
| Cable Diameter | 4.5mm (slim for conduit/pass-through) |
| Max Length | Up to 100 meters |
| Detachable Heads | Yes – both ends detachable for cable pulling |
| HDR Support | HDR10, Dolby Vision, 10-bit/12-bit color |
| HDCP | HDCP 2.3 compliant |
| Audio Support | eARC, Dolby Atmos, DTS:X, up to 32 channels |
| Operating Temperature | 0°C to 70°C |
| Jacket Material | PVC / LSZH (optional) |
| Customization | Length, connector combo, jacket color, logo |
Applications
- Custom Installation – In-wall, in-conduit, pre-wiring for homes and businesses
- Home Theater – 8K TVs, projectors, soundbars, AV receivers
- Commercial AV – Conference rooms, classrooms, auditoriums, control rooms
- Digital Signage – Video walls, retail displays, commercial installations
- Gaming & Esports – High-refresh gaming monitors and consoles
- Portable Devices – Micro HDMI for cameras, tablets, laptops, DSLR
- Broadcast & Studio – Studio monitors, video production, live events
Why Choose Changzhou Jinshang?
With over 15 years of experience in fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality 2-in-1 detachable AOC HDMI cables with strict quality control. We offer OEM/ODM services, custom lengths, connector configurations, and competitive factory-direct pricing. All products undergo 100% testing before shipment.
Contact us today for a free quote and sample!
